Til leie

Kompakt ROV med egenskapene til store offshore ROV

kr 9 500,- i uken + mob/demob kr 10 000,-

ROV Seabotix vLBV950 miniubåt til leie

Tekniske spec:

1000 m dybde (450m kabel)
2 x kamera IP og B/W HD
Gripearm
22,5 kg thrust
Vekt 40 kg

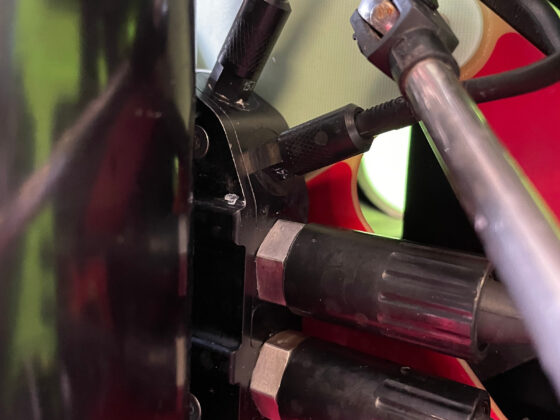

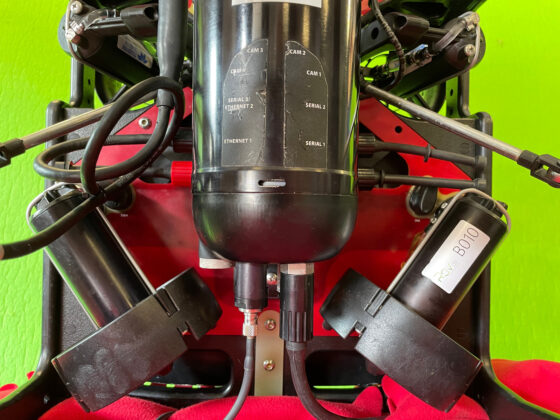

Tilkobling for verktøy:

2 x ethernet connectors
3 x aux camera connectors
2x RS232/485 connectors

Alle priser eks mva, Frakt kommer I tillegg.

Produktside Flere spesifikasjoner

Forespørsel

Ta kontakt for utleie

lepsoy@noomas.no

+47 48 09 09 09

Spesifikasjoner

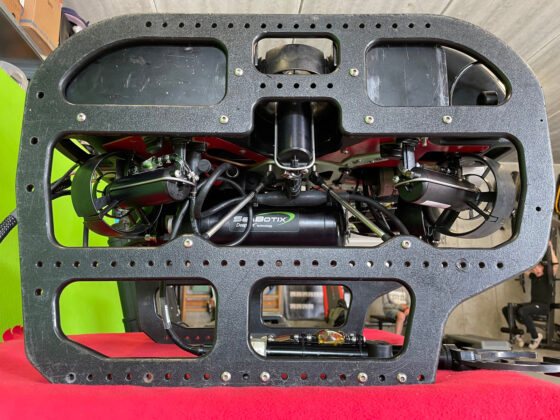

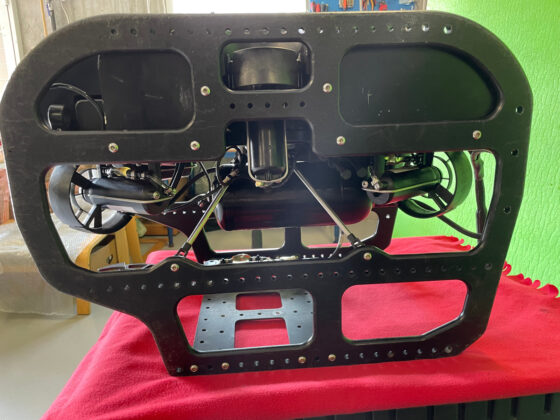

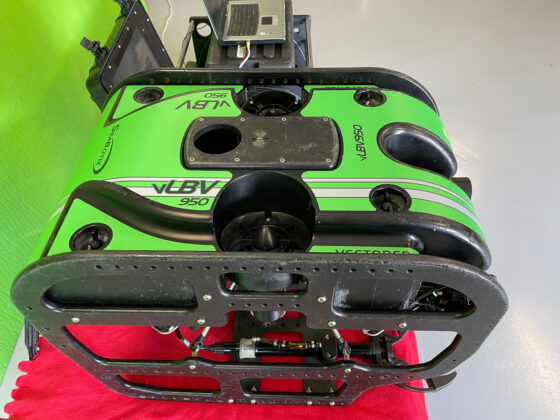

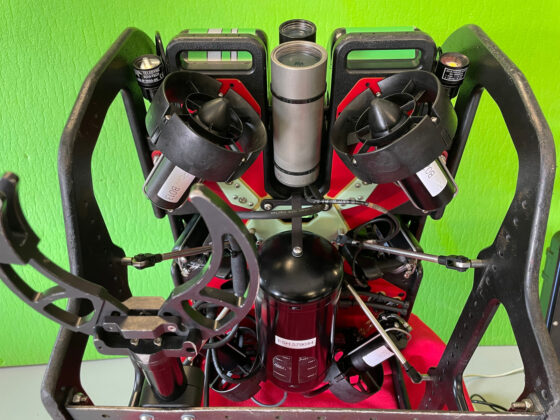

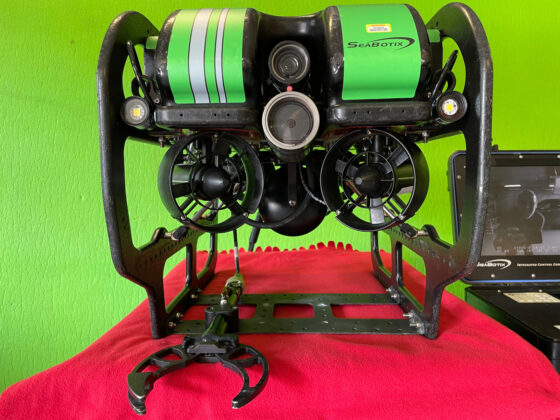

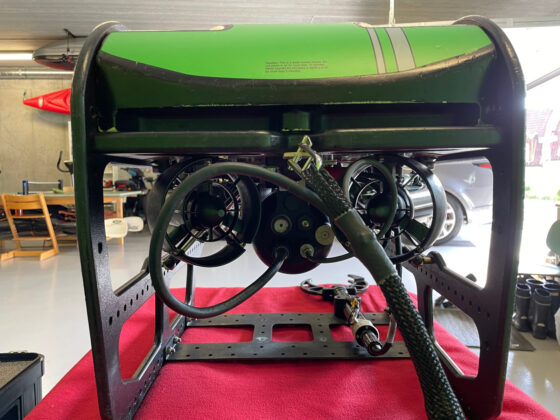

SeaBotix vLBV 950, 18 vector F:22,5kgf L:7,3kg

vLBV vehicle depth rated to 950 MSW – 3,116 FSW

Six (6) Brushless DC thrusters (4 vectored, 2 vertical)

Auto heading, depth and trim

Video overlay

Temperature sensor

Electric grabber

Large frame for sonar ready Botle connectors

2 x Ethernet, 3 x aux camera

2 x RS232/485 Integrated Control System

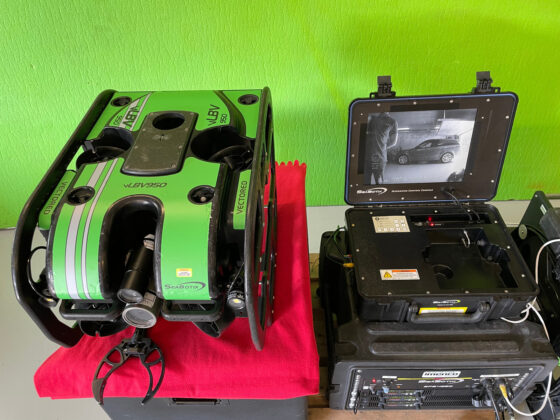

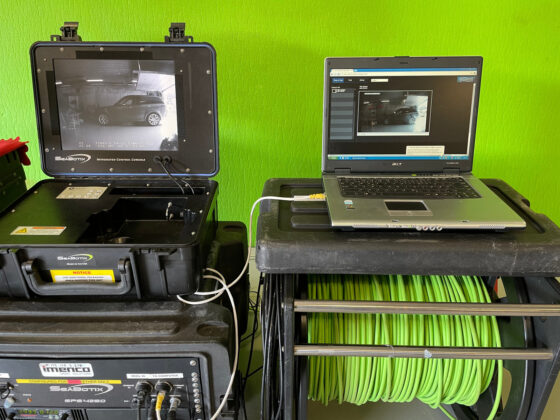

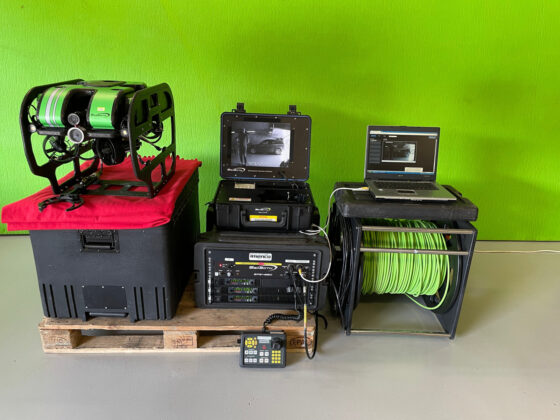

Protective case fitted with monitor, surface power supply and operator control unit

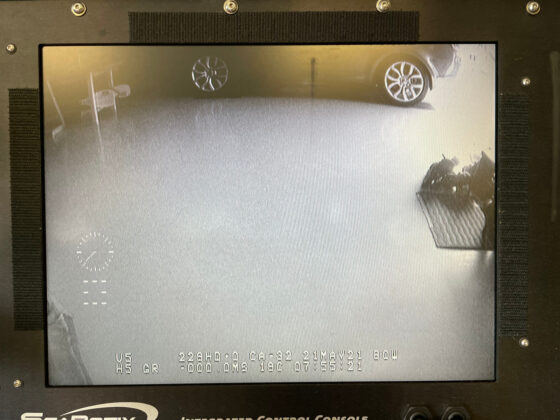

38 cm (15 in) Color LCD monitor fitted in lid of case - waterproof

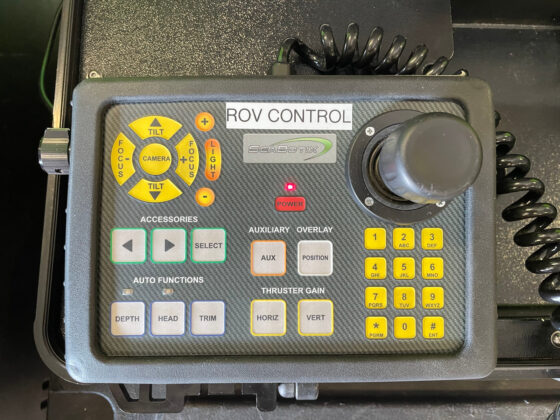

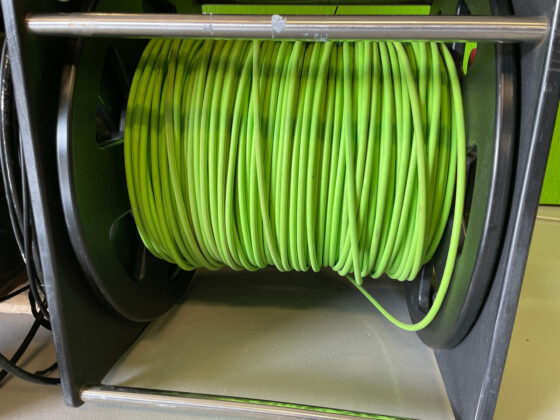

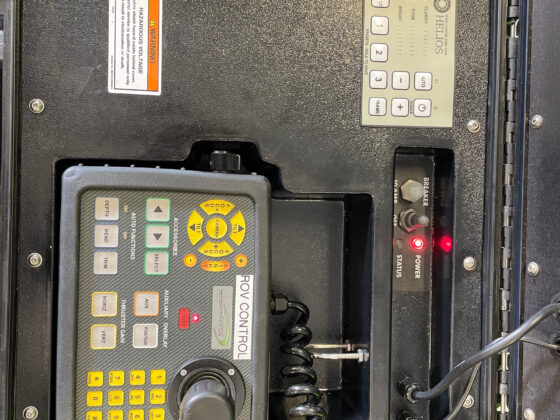

vLBV operator control unit - removable from lower tray of integrated console Tether and winch

450 meters – 2460 feet of tether

9.05 mm - 0.35 in diameter

100 kg f - 220 ft/lb working load

700 kg f - 1,540 ft/lb breaking strain

Connectors and strain relief

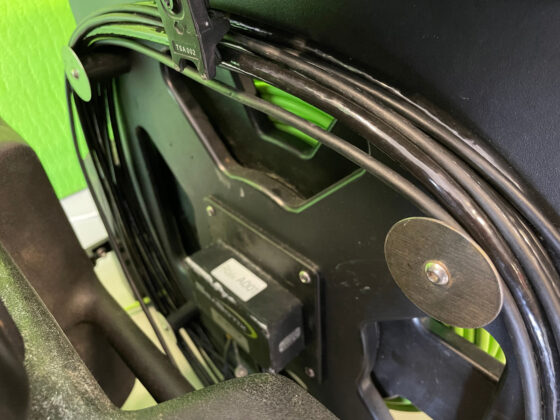

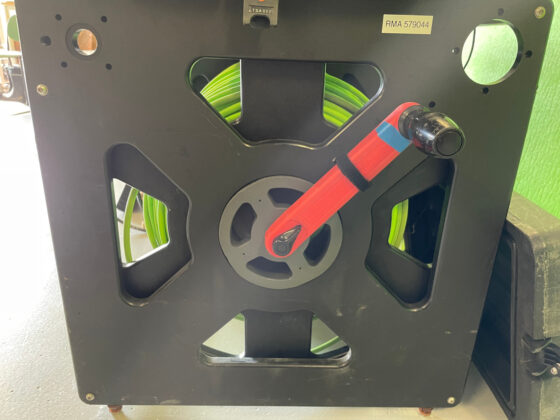

Manuel winch 750m capasity and slipring Cameras & Lighting

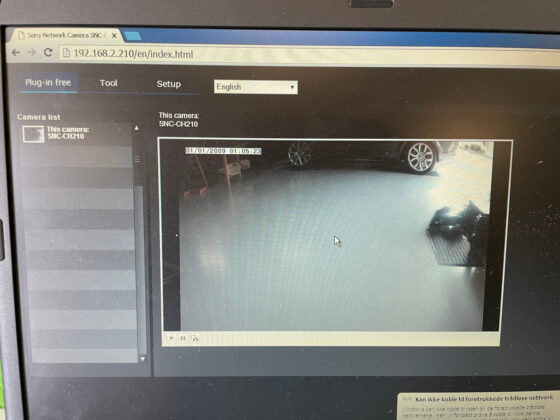

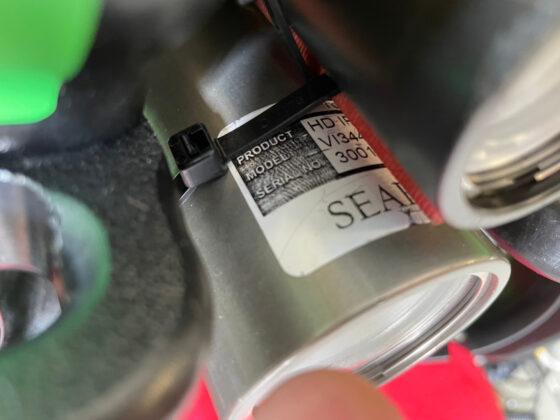

Color Camera Sony IP UWV 605 high definition 2048H c 1536V pixels FOV 70

Black and white low light SeaBotix FOV 65

2 x 2160 Lumen LED light tracking camera

180 degree rotating camera chassis

65 degree diagonal angle of view in water Power supply

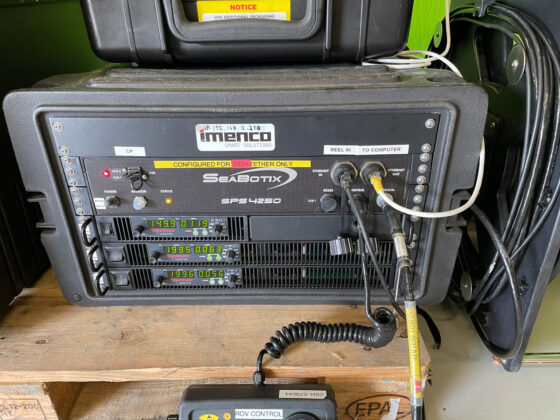

SPS 4250 Include Transport boxes
